New Fox Chassis - 'Flatboy'
Posted: Tue Mar 31, 2009 4:59 pm
by Mark Fox
Hi All,
Here are some shots of my newest design - this is a WIP but is showing some real potential.
It has been called a 'Sled' by Stoo, a '1/24 Wompy' by Plucka and a 'Slab' by Steve King but I have named it 'Flatboy'
Wheelbase is 4 1/16 "
Guide lead is 5 1/16 "
Weight without lead is 113 gms
Lead added to date is 6 gms to make total 119gms as raced at HSC CanAm series Race #4

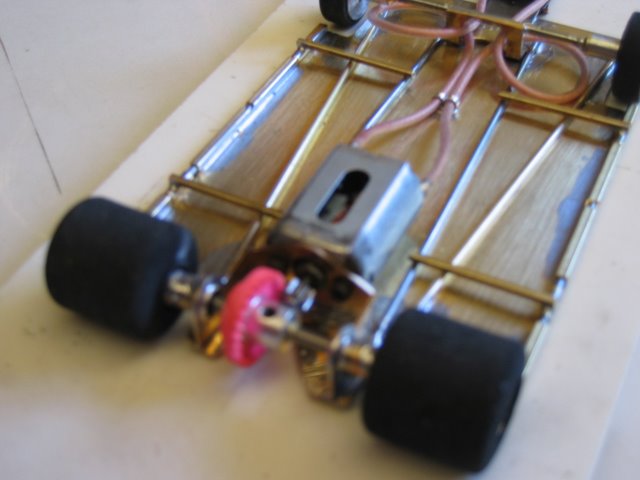

- Top Shot
- IMG_2944.JPG (66.15 KiB) Viewed 7328 times

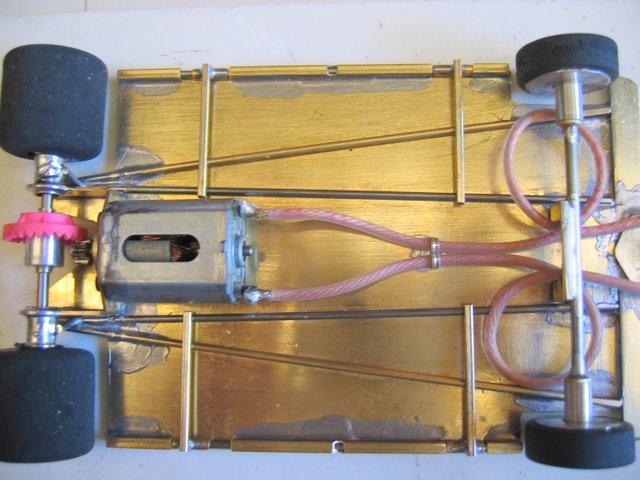

- Front end layout
- IMG_2945.JPG (51.08 KiB) Viewed 7327 times

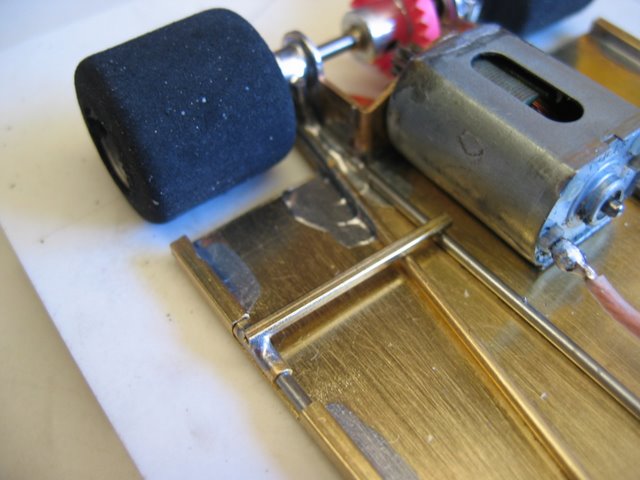

- Rear end layout
- IMG_2946.JPG (56.46 KiB) Viewed 7329 times

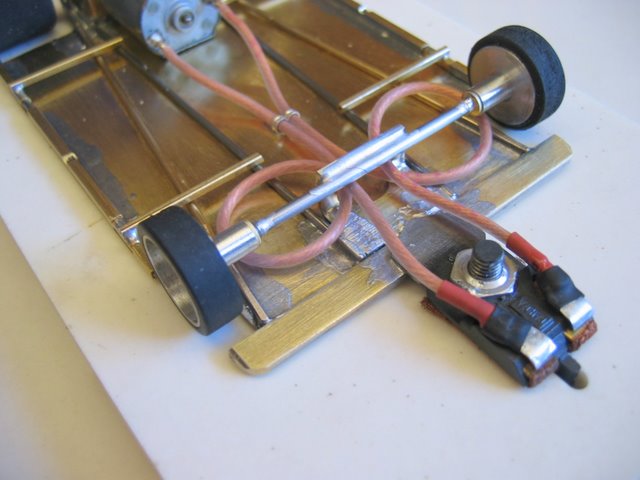

- Bracket treatment
- IMG_2950.JPG (43.86 KiB) Viewed 7327 times

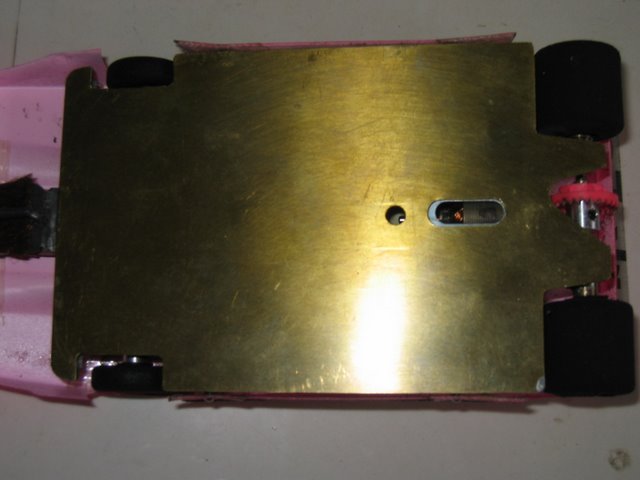

- Bottom shot
- IMG_2965.JPG (37.61 KiB) Viewed 7323 times

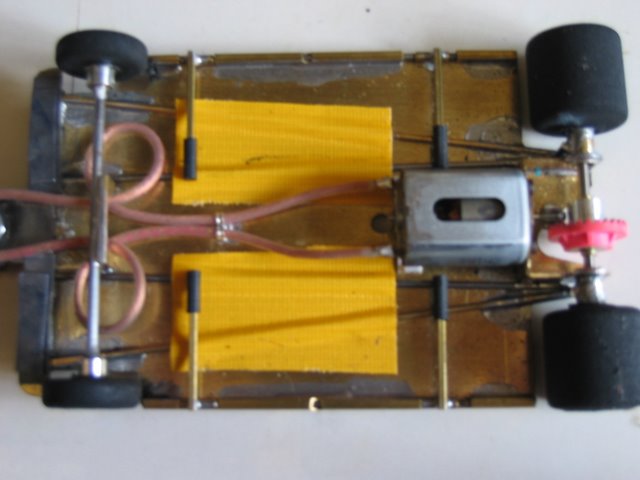

- Top shot - as raced
- IMG_2968.JPG (44.03 KiB) Viewed 7324 times
Re: New Fox Chassis - 'Flatboy'
Posted: Wed Apr 01, 2009 9:35 am
by SlotBaker
Nice build Mark, and an interesting design.
How thick is the main pan? 0.030"??
Are the front wheels home made? Hutcho??
Sorry for being so nosey.
I guess you have left the front axle unsupported on the ends to allow the pan to flex??, but it looks a bit susceptible to a hit on the front end. Time will tell, eh.
There was a similar looking frame (different principles) like this on SlotBlog that they called the Egg Flipper. That was a spring steel plumber frame tho.
Re: New Fox Chassis - 'Flatboy'
Posted: Wed Apr 01, 2009 11:47 am
by Mark Fox
SlotBaker wrote:Nice build Mark, and an interesting design.
How thick is the main pan? 0.030"??
Are the front wheels home made? Hutcho??
Sorry for being so nosey.
I guess you have left the front axle unsupported on the ends to allow the pan to flex??, but it looks a bit susceptible to a hit on the front end. Time will tell, eh.
Hi Steve,
In answer to you queries: -
(1) Brass pan is .012".
(2) Some of the pics have Hutcho's fronts whiilst I raced it with JK fronts as per the pics.
(3) Yes flex was an objective but I also wanted the weight of the front axle carrier to be more centralised.
(4) I think it is fairly strong as there is a lump of .063" across the front and the 'rails' butt up to that - I did hit the wall a couple of times quite hard (for testing purposes only of course
) on Saturday night and no damage done.
Re: New Fox Chassis - 'Flatboy'
Posted: Wed Apr 01, 2009 1:20 pm
by hutch--
Steve,
There was a potential problem with the front wheels that I made and it was evident the last time I went with Mark up to Hornsby for practice. Depending on the weather the track can move at the joins slightly and on the day we turned up some of the track joins were higher on the traling edge than the leading edge so my cars with the very hard front tires actually bounced the front up in the air as it hit the joins.
Wayne did a minor adjustment to the track joins and they worked fine once the bump was gone but it means in the longger term that I need to find a slightly softer rubber for the front tires so it is more tolerant on track surfaces.
