I am looking for a wiring diagram for the controller plug.

As usual, I can't find one when I need one.

Thanks
Greg

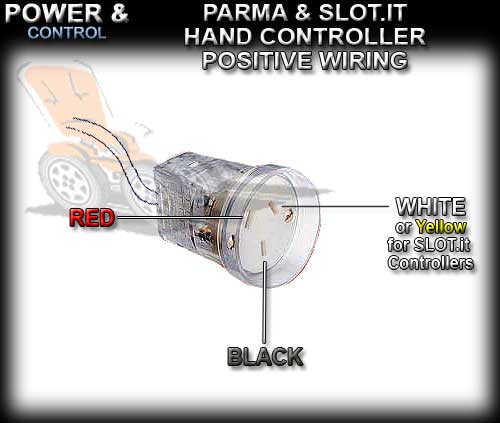

Hey Greg,.. if your controller uses the Standard wire colours it should get Wired like this diagram from the Armchair Racer Web Page;
https://www.armchairracer.com.au/power- ... ng-diagram

Thanks Stoo

No Probs Greg,.. I was Sure this had already been covered here before and was somewhat surprised there Wasn't already a Pic or description here ??

As an Addition to the Info',..

Black is the 'Common' from the Track
Red is The Brake
White is the Wiper on the controller or Power
