A few pics and some specifications on my latest chassis which I have designated 'Fatboy #2' - this build is a direct descendant from 'Fatboy' which was the first frame I raced and have loaned out a few times - I still use 'Fatboy' as a yardstick to assess my later builds.
Firstly some specs: -
Main rails are 16#.
Brass attached to bracket and front axle are .062" by .250" wide.
The front panlets and guide tongue platform are .062" whilst the pans are .032".
The motor bracket is custom built from .032" brass plate.
Guide length from back axle is 5.032".
Wheel base is 4.032".
Weight with body is 124 Grams.
Some pictures: -
Fatboy #2
Fatboy #2
- Attachments
-

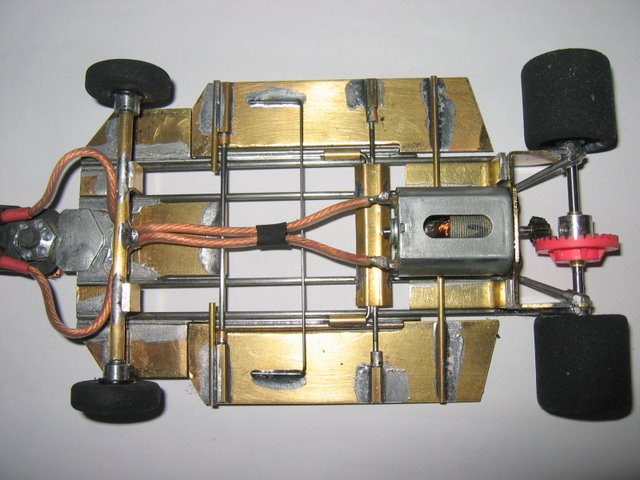

- Top View
- IMG_2972.JPG (66.98 KiB) Viewed 6819 times
-

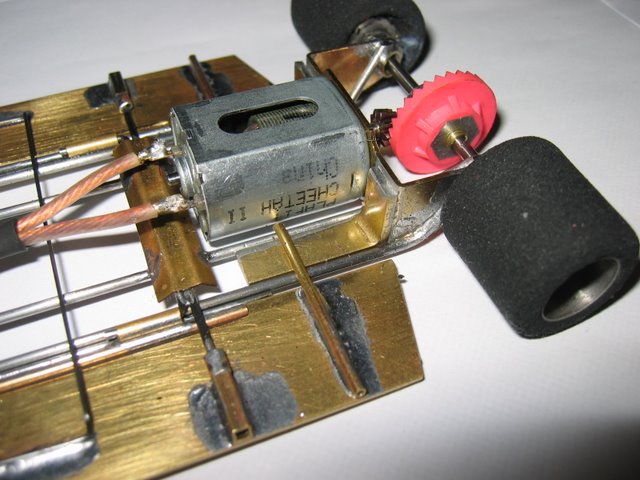

- Rear Bracket Layout
- IMG_2973.JPG (69.71 KiB) Viewed 6819 times
-
- Pan Layout
- IMG_2975.JPG (68 KiB) Viewed 6818 times
-

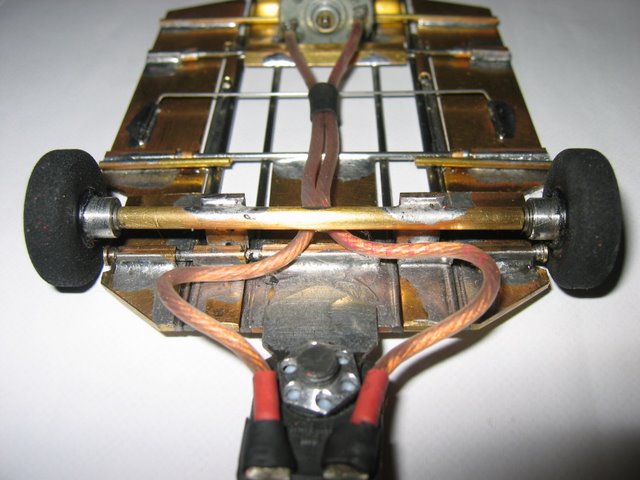

- Front end Construction - Independent JK fronts
- IMG_2976.JPG (61.81 KiB) Viewed 6817 times
-

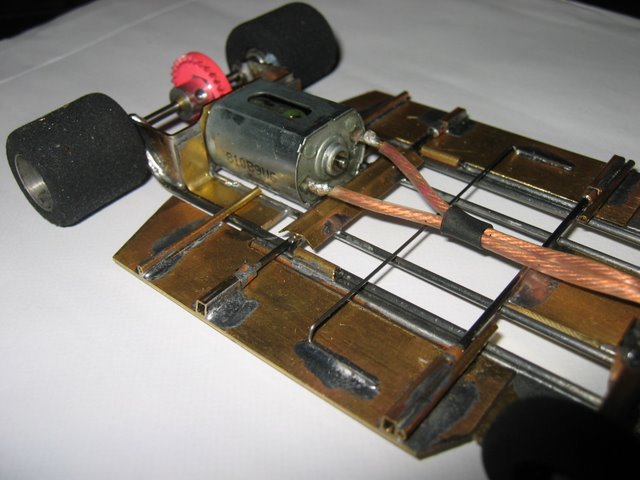

- Pans Rattle - NO Hinges
- IMG_2977.JPG (58.57 KiB) Viewed 6818 times
-
- Wide Custom Bracket used
- IMG_2978.JPG (57.58 KiB) Viewed 6818 times
-

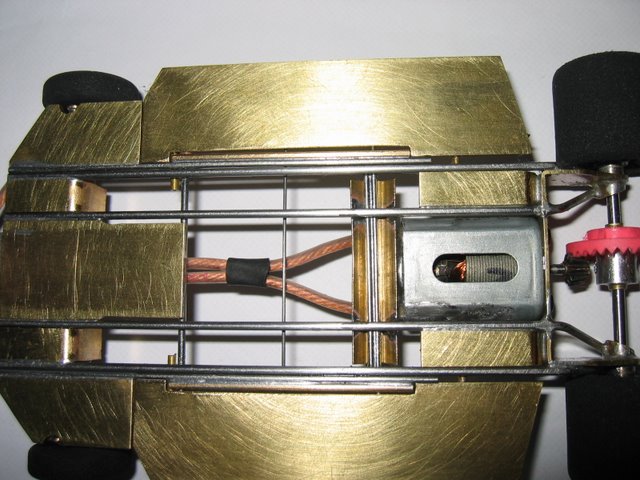

- Bottom View
- IMG_2980.JPG (77.27 KiB) Viewed 6816 times
-

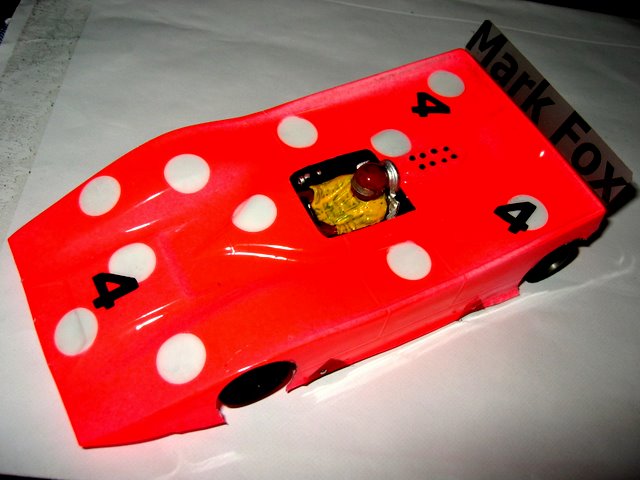

- Topped with Ti22 - (just for Gary J)
- IMG_2982.JPG (54.3 KiB) Viewed 6816 times
Regards - Mark
"Do Less with More Focus"
"Do Less with More Focus"
Re: Fatboy #2
Looks good Mark, and pretty beefy up the front.
What's the front/rear weight ratio?
Thanks for posting.
What's the front/rear weight ratio?
Thanks for posting.
Steve King
Re: Fatboy #2
Ratios are: -SlotBaker wrote:
What's the front/rear weight ratio?
47% Front / 53% Rear
Regards - Mark
